USB-to-CAN V2 Series
Cost-Effective CAN Connectivity

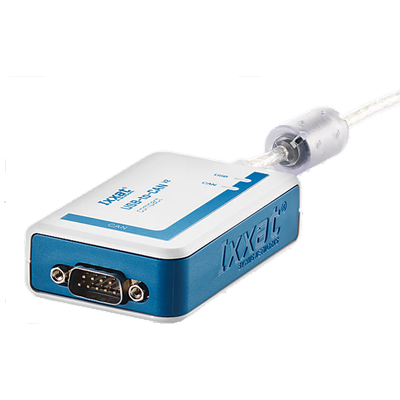

USB-to-CAN V2 compact
1× CAN, D-Sub 9, galv. isolated
Easy and cost-efficient way to connect a computer to a CAN bus network. Compact housing with D-Sub 9 CAN interface and galvanic isolation. Ideal for testing, development, maintenance, and control across diverse industrial setups.
- 1× CAN high-speed channel (ISO 11898-2:2016)
- D-Sub 9 connector, USB Type-A
- Native USB 2.0 hi-speed (480 Mbit/s)
- Galvanic isolation
- Operating temp: -20 to +70 °C

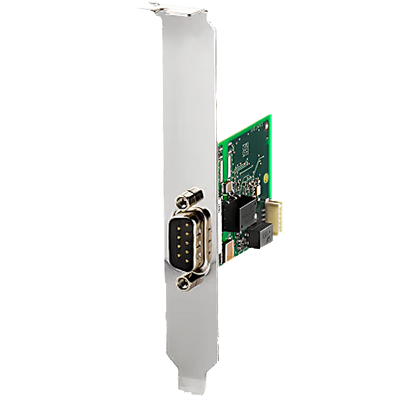

USB-to-CAN V2 embedded
1× CAN, internal USB, galv. isolated
PCB without housing — for installation into a computer via internal USB header. Includes slot bracket and internal USB cable with 5-pin female connector. Designed for OEM integration and series production.
- 1× CAN high-speed channel
- D-Sub 9 connector + internal USB cable (ZHR-5P)
- Slot bracket included
- Galvanic isolation
- PCB form factor (no housing)

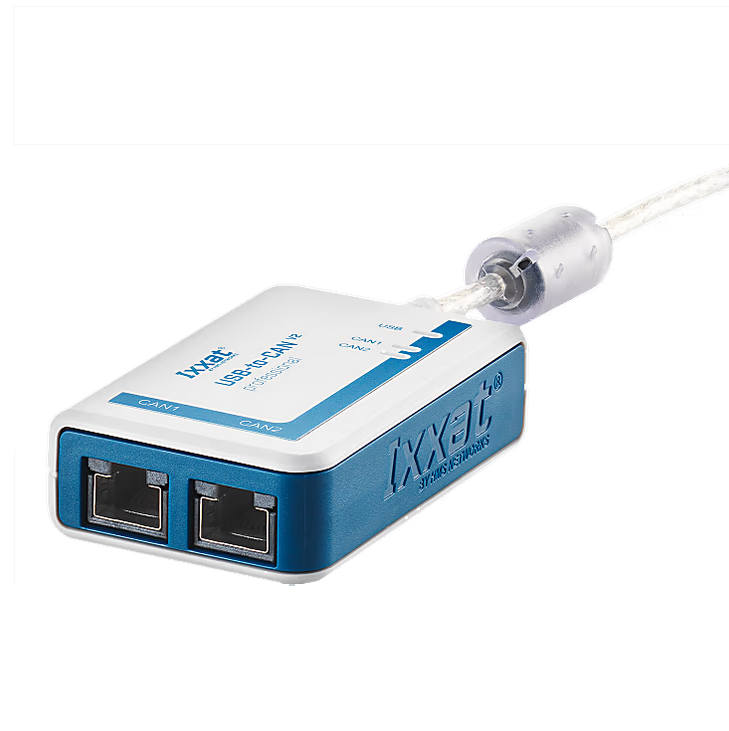

USB-to-CAN V2 professional
2× CAN, RJ45, galv. isolated
Two CAN interfaces with galvanic isolation — connect to up to two independent CAN bus systems. Ships with two RJ45 to 9-pin D-Sub adapter cables for quick and easy CAN connection.
- 2× CAN high-speed channels (RJ45)
- Native USB 2.0 hi-speed (480 Mbit/s)
- High-precision on-board time stamping
- Galvanic isolation, both channels
- Includes 2× RJ45-to-D-Sub 9 adapter cables

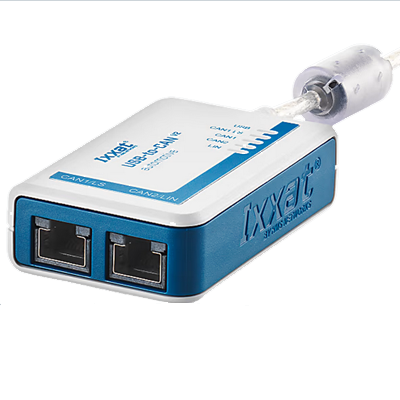

USB-to-CAN V2 automotive
2× CAN + LIN, galv. isolated
Two switchable CAN interfaces (one switchable to CAN low-speed) plus a LIN interface — each galvanically isolated. Versatile choice for automotive testing, ECU diagnostics, and industrial control.
- 2× CAN channels (1 switchable to low-speed)
- 1× LIN interface (master or slave mode)
- RJ45 connectors, galvanic isolation
- Native USB 2.0 hi-speed
- ISO 11898-2 / ISO 11898-3 / LIN

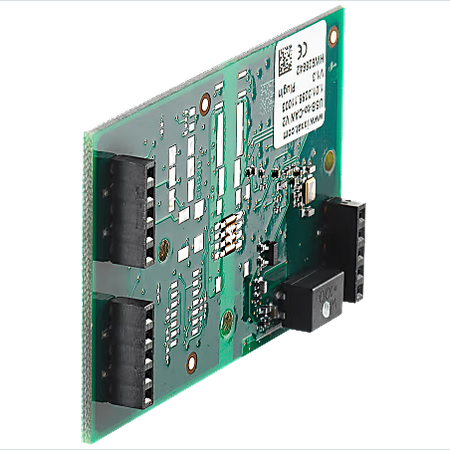

USB-to-CAN V2 Plugin (1 channel)
1× CAN, OEM PCB, galv. isolated
Single-channel CAN plugin for fast OEM integration into customer devices. Compact pin-header design — ideal for space-limited applications and series production.
- 1× CAN channel, galvanic isolation
- Single-row 2.54 mm pin headers
- USB and CAN connectors as headers
- Compact OEM form factor
- For series production
USB-to-CAN V2 Plugin (2 channel)
2× CAN, OEM PCB, galv. isolated
Two-channel CAN plugin for OEM device integration. Compact footprint with full galvanic isolation — perfect for embedding into customer products that need dual-channel CAN connectivity.
- 2× CAN channels, galvanic isolation
- Pin-header connectors
- Native USB 2.0 hi-speed
- OEM/embedded form factor
- Series production ready
Need Help Choosing?
Our team can recommend the right Ixxat interface for your CAN application — for pricing, lead time, or technical guidance.
Request a Quote Contact Us
