BACnet Client to Modbus Server
Bring BACnet Devices into a Modbus Network

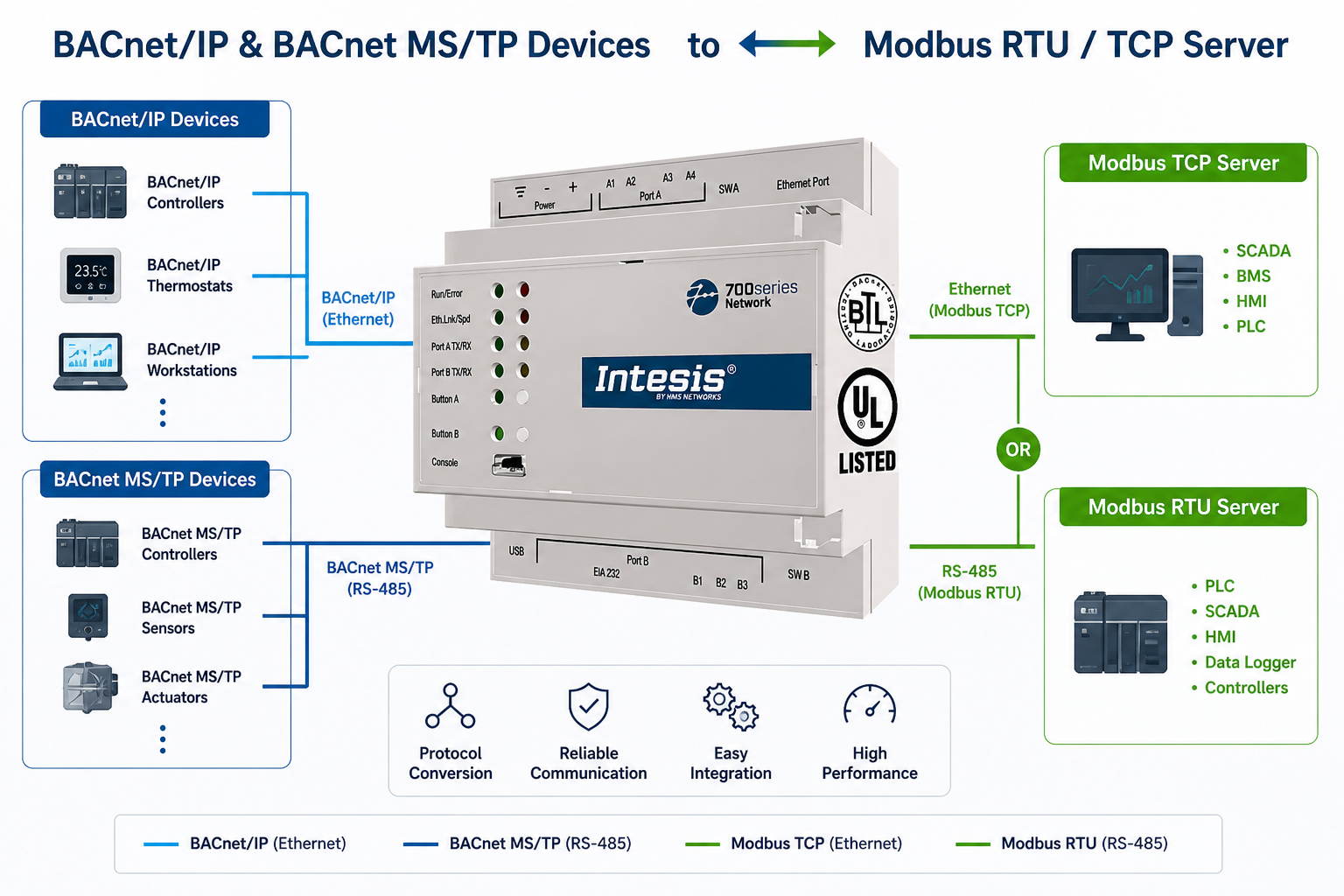

All three models share identical hardware (the Intesis IN700-485 protocol translator) and run the same MBS-BAC application — the only difference is the licensed data-point capacity. The gateway acts as a BACnet/IP and BACnet MS/TP client to read points from BACnet server devices, and exposes those points to Modbus TCP and Modbus RTU masters. Up to 5 simultaneous Modbus TCP connections, up to 32 Modbus devices per RTU node and up to 255 RTU nodes total. Configured visually using the free Intesis MAPS software — no scripting required.

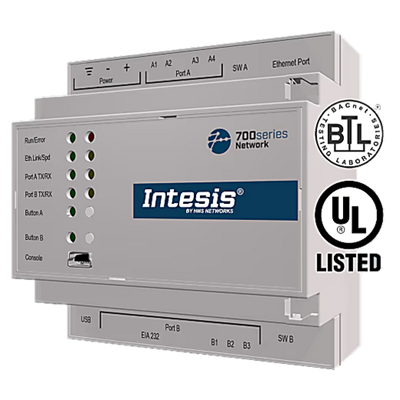

Intesis MBS-BAC Gateway — 100 Points
BACnet/IP & MS/TP Client → Modbus TCP/RTU Server
Entry-level capacity tier — ideal for compact installations integrating a small BACnet sub-system into a Modbus SCADA or BMS. Supports up to 100 BACnet/Modbus data points.
- Up to 100 data points
- BACnet/IP & BACnet MS/TP client
- Modbus TCP server (up to 5 connections)
- Modbus RTU server (up to 255 nodes)
- BTL Certified, UL Listed, CE / FCC / UKCA
- DIN-rail, 24 VDC, configured with Intesis MAPS
Intesis MBS-BAC Gateway — 250 Points
BACnet/IP & MS/TP Client → Modbus TCP/RTU Server
Mid-range capacity tier covering most light-commercial integrations — multiple BACnet AHUs, VAVs or chillers exposed to a Modbus head-end. Supports up to 250 BACnet/Modbus data points.
- Up to 250 data points
- BACnet/IP & BACnet MS/TP client
- Modbus TCP server (up to 5 connections)
- Modbus RTU server (up to 255 nodes)
- BTL Certified, UL Listed, CE / FCC / UKCA
- DIN-rail, 24 VDC, configured with Intesis MAPS
Intesis MBS-BAC Gateway — 600 Points
BACnet/IP & MS/TP Client → Modbus TCP/RTU Server
Large-capacity tier suited to commercial buildings, campus installations, or industrial sites consolidating significant BACnet sub-systems on a Modbus SCADA. Supports up to 600 BACnet/Modbus data points.
- Up to 600 data points
- BACnet/IP & BACnet MS/TP client
- Modbus TCP server (up to 5 connections)
- Modbus RTU server (up to 255 nodes)
- BTL Certified, UL Listed, CE / FCC / UKCA
- DIN-rail, 24 VDC, configured with Intesis MAPS
Need Help Sizing the Gateway?
Our team can help you count BACnet objects, pick the right capacity tier, and provide pricing, lead time and Intesis MAPS configuration assistance.
