Industrial Wireless Bridges

The complete Anybus Wireless Bridge II family by HMS Networks

Replace cables with a secure wireless link — over Bluetooth or Wi-Fi 2.4 / 5 GHz — for Ethernet, Serial (RS-232/422/485) or CAN networks. Anybus Wireless Bridge II handles point-to-point cable replacement and access-point applications with up to seven simultaneous clients, range up to 400 m, IP66/67-rated rugged enclosures, and PROFIsafe-compliant operation. Ideal for moving machinery, AGVs, hazardous-area communication, and hard-to-reach locations where cabling is impractical.

Ethernet Wireless Bridges

Wireless Cable Replacement for Industrial Ethernet

Bridge leading TCP/IP-based industrial Ethernet networks — PROFINET, EtherNet/IP, Modbus TCP and BACnet/IP — over Bluetooth or Wi-Fi (2.4 / 5 GHz). Choose the internal-antenna model for the simplest installation, or the external-antenna model when the unit must be enclosed in a steel cabinet or radio-secure environment.

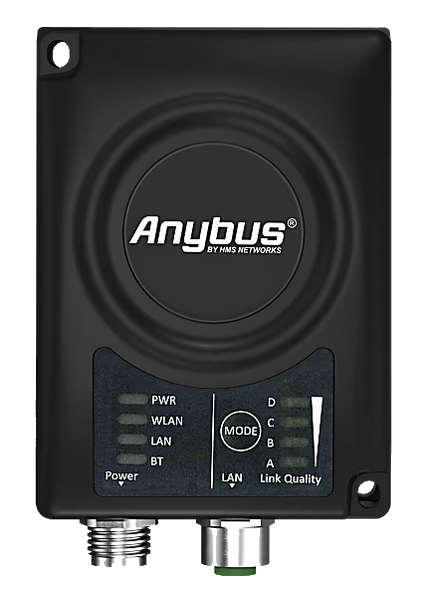

Anybus Wireless Bridge II Internal Antenna - Ethernet

Anybus Wireless Bridge II — Ethernet

Internal antenna, Bluetooth + Wi-Fi 2.4/5 GHz

Industrial Ethernet wireless bridge with three internal antennas (including MIMO) for high performance and robust links. Range up to 400 m. Bridges PROFINET, EtherNet/IP, Modbus TCP and BACnet/IP over Bluetooth or Wi-Fi.

  • Wi-Fi 2.4/5 GHz + Bluetooth Classic & LE
  • 3× internal antennas, MIMO support
  • Range up to 400 m, up to 7 clients
  • IP66/67 rated, –40 to +65 °C
  • UL Haz.Loc. Class 1/Div 2, ATEX Zone 2 (Gas)
  • PROFIsafe compliant, AT commands, CLI
Item No.: AWB3000-B
Datasheet

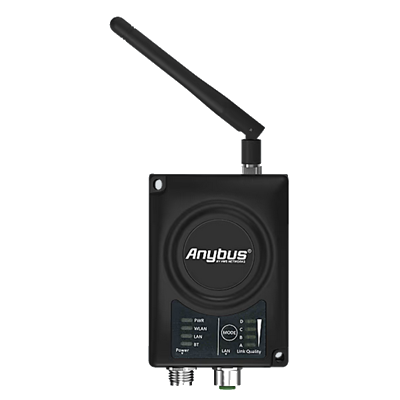

Anybus Wireless Bridge II External Antenna - Ethernet

Anybus Wireless Bridge II — Ethernet

External antenna, Bluetooth + Wi-Fi 2.4/5 GHz

Same robust Ethernet wireless bridging as the internal-antenna model, but with an RP-SMA connector for an external dual-band antenna — allowing antenna placement away from the unit when it must be installed inside a cabinet or shielded enclosure.

  • Wi-Fi 2.4/5 GHz + Bluetooth Classic & LE
  • RP-SMA external antenna connector
  • Range up to 400 m, up to 7 clients
  • IP66/67 rated, –40 to +65 °C
  • UL Haz.Loc. Class 1/Div 2, ATEX Zone 2 (Gas)
  • PROFIsafe compliant, AT commands, CLI
Item No.: AWB3010-B
Datasheet

Serial Wireless Bridges

Wireless Connectivity for RS-232/422/485

Cable replacement for serial machines and devices — connect RS-232/422/485 endpoints over Bluetooth or Wi-Fi without rewiring. Available in internal-antenna and external-antenna variants. The mature 024140-B Bluetooth-only bridge remains available for service and direct replacement of legacy installations.

Anybus Wireless Bridge II Internal Antenna - Serial

Anybus Wireless Bridge II — Serial

Internal antenna, Bluetooth + Wi-Fi 2.4/5 GHz

Wireless cable replacement for serial-based machines. Connects RS-232/422/485 devices over Bluetooth or Wi-Fi with three internal antennas for high performance. Up to seven clients in access-point mode.

  • RS-232 / RS-422 / RS-485 serial interface
  • Wi-Fi 2.4/5 GHz + Bluetooth Classic & LE
  • 3× internal antennas, range up to 400 m
  • Up to 7 simultaneous clients
  • IP66/67 rated, –40 to +65 °C
  • PROFIsafe compliant, AT commands, CLI
Item No.: AWB3005-B
Datasheet
Anybus Wireless Bridge II External Antenna - Serial

Anybus Wireless Bridge II — Serial

External antenna, Bluetooth + Wi-Fi 2.4/5 GHz

External-antenna serial wireless bridge — RP-SMA connector lets you mount the antenna outside an enclosed cabinet for reliable RF performance. Modern successor to the 024140-B Bluetooth-only bridge.

  • RS-232 / RS-422 / RS-485 serial interface
  • Wi-Fi 2.4/5 GHz + Bluetooth Classic & LE
  • RP-SMA external antenna connector
  • Up to 7 simultaneous clients
  • IP66/67 rated, –40 to +65 °C
  • Successor to 024140-B
Item No.: AWB3015-B
Datasheet

CAN Wireless Bridges

Wireless Connectivity for CAN Networks

Wireless cable replacement for CAN — bridge two CAN segments over Bluetooth or Wi-Fi 2.4/5 GHz, ideal for moving machinery, AGVs, robotics, and applications where slip rings or trailing cables would normally be required. Available with internal or external antennas.

Anybus Wireless Bridge II Internal Antenna - CAN

Anybus Wireless Bridge II — CAN

Internal antenna, Bluetooth + Wi-Fi 2.4/5 GHz

Wireless CAN cable replacement with three internal antennas. Bridges CAN over Bluetooth or Wi-Fi for moving machinery, AGVs, and control cabinets where physical cabling is impractical or expensive to maintain.

  • CAN interface, point-to-point bridging
  • Wi-Fi 2.4/5 GHz + Bluetooth Classic & LE
  • 3× internal antennas, MIMO support
  • Up to 7 simultaneous clients
  • IP66/67 rated, –40 to +65 °C
  • PROFIsafe compliant, AT commands, CLI
Item No.: AWB3006-B
Datasheet
Anybus Wireless Bridge II External Antenna - CAN

Anybus Wireless Bridge II — CAN

External antenna, Bluetooth + Wi-Fi 2.4/5 GHz

External-antenna CAN wireless bridge — RP-SMA connector for installations requiring antenna separation from the unit, such as inside metal enclosures or hazardous-area cabinets. Same protocol coverage and PROFIsafe compliance as the internal-antenna variant.

  • CAN interface, point-to-point bridging
  • Wi-Fi 2.4/5 GHz + Bluetooth Classic & LE
  • RP-SMA external antenna connector
  • Up to 7 simultaneous clients
  • IP66/67 rated, –40 to +65 °C
  • PROFIsafe compliant, AT commands, CLI
Item No.: AWB3016-B
Datasheet

Need Help Choosing?

Our team can help you specify the right Anybus Wireless Bridge II for your application — for pricing, lead time, antenna planning, or technical guidance.
