Analog Input Panel Meters
PM-50A — Universal Analog Input
The PM-50A accepts process signals (4–20 mA, 0–10 V), DC voltage, DC current, resistance, and temperature inputs in a single universal analog front end. A full-color touchscreen with swipe gestures and an optional mobile app give instant visual access to performance data — and the modular design lets you stack field-installable option modules for additional outputs, communications, or AC power.

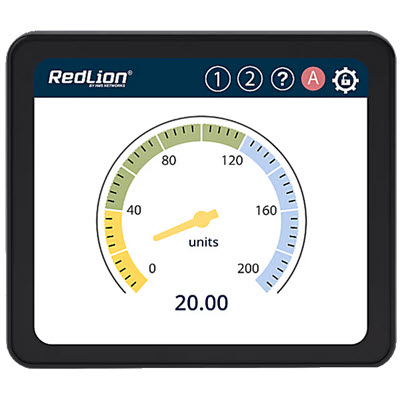

PM-50A — 3.5" Display
Universal Analog Input · 1/16 DIN · Wi-Fi
3.5-inch (1/16 DIN) full-color graphical panel meter with universal analog input. Resistive touchscreen with swipe gestures, customizable color graphics, and built-in setup wizard. Wi-Fi plus RS-485/Modbus standard; Ethernet or RS-232 optional via plug-in modules. NEMA 4X / IP65 sealed front bezel.
- Universal analog: process, DC V, DC I, RTD, thermocouple, resistance
- 3.5" 320×240 TFT, 18-bit color, 540 cd/m² backlight
- Touchscreen + mobile-app monitoring
- Wi-Fi + RS-485/Modbus standard
- Up to 3 stackable option modules
- NEMA 4X / IP65 sealed front bezel, UL listed
PM-50A — 4.3" Display
Universal Analog Input · 1/8 DIN · Wi-Fi
Larger 4.3-inch (1/8 DIN) full-color graphical version of the PM-50A. Same universal analog input and touchscreen interface as the 3.5" model, with a wider, brighter screen (480×272) for at-a-glance status from across the plant floor. Supports up to five stackable option modules.
- Universal analog: process, DC V, DC I, RTD, thermocouple, resistance
- 4.3" 480×272 TFT, 18-bit color, 420 cd/m² backlight
- Touchscreen + mobile-app monitoring
- Wi-Fi + RS-485/Modbus standard
- Up to 5 stackable option modules
- NEMA 4X / IP65 sealed front bezel, UL listed, EMC compliant
Digital Input Panel Meters
PM-50D — Universal Digital Input
The PM-50D handles digital pulse signals — counts, rates, frequency, totals, and timing functions — across a wide voltage range. Same touchscreen interface and modular design as the analog version, ideal for production counts, batch totals, flow-rate display, and tachometer applications.
PM-50D — 3.5" Display
Universal Digital Input · 1/16 DIN · Wi-Fi
3.5-inch (1/16 DIN) full-color graphical panel meter with universal digital input for count, rate, frequency, and timer applications. Touchscreen interface with mobile-app monitoring, web-browser configuration, and customizable color graphics for status and alarm indication.
- Universal digital: count, rate, frequency, totalizer, timer
- 3.5" 320×240 TFT, 18-bit color, 540 cd/m² backlight
- Touchscreen + mobile-app monitoring
- Wi-Fi + RS-485/Modbus standard
- Up to 3 stackable option modules
- NEMA 4X / IP65 sealed front bezel, UL listed
PM-50D — 4.3" Display
Universal Digital Input · 1/8 DIN · Wi-Fi
Larger 4.3-inch (1/8 DIN) full-color graphical version of the PM-50D. Same universal digital input and touchscreen interface as the 3.5" model, with a wider 480×272 display and room for up to five stackable option modules — ideal for high-visibility production lines and batching stations.
- Universal digital: count, rate, frequency, totalizer, timer
- 4.3" 480×272 TFT, 18-bit color, 420 cd/m² backlight
- Touchscreen + mobile-app monitoring
- Wi-Fi + RS-485/Modbus standard
- Up to 5 stackable option modules
- NEMA 4X / IP65 sealed front bezel, UL listed, EMC compliant
Need Help Selecting a Panel Meter?
Analog vs. digital input, 3.5" vs. 4.3" display, option-module choices — our team can help you spec the right PM-50 for your application.
