Ethernet Wireless Bolts
RJ45 PoE — Bluetooth + Wi-Fi 2.4/5 GHz
Connect Ethernet-based machines to a wireless network with Bluetooth, Bluetooth LE, or dual-band Wi-Fi (access point or client). Supports PROFINET, EtherNet/IP, Modbus TCP, BACnet/IP and any TCP/UDP-based protocol. Single-cable Power-over-Ethernet (PoE) or 3-pin 19–36 VDC supply. Pick Black for standard installations or Sunbolt White for outdoor / direct-sunlight applications.
Anybus Wireless Bolt — Ethernet RJ45 PoE
Black version, Bluetooth + Wi-Fi 2.4/5 GHz
All-in-one bolt-on Ethernet wireless gateway with integrated dual-band antenna. Single RJ45 connector handles both data and PoE; or use the 3-pin 19–36 VDC connector. Range up to 100 m.
- Wi-Fi 2.4/5 GHz, IEEE 802.11 a/b/g/n/d/r
- Bluetooth Classic + Bluetooth LE
- RJ45 Ethernet, PoE Class 0 or 19–36 VDC
- PROFINET IO, EtherNet/IP, Modbus TCP
- Access point or client mode
- IP66/67, –40 to +65 °C, UL Class I Div 2
Anybus Wireless Bolt — Ethernet RJ45 PoE
Sunbolt White, Bluetooth + Wi-Fi 2.4/5 GHz
Same Ethernet wireless functionality as the Black version, but with the white-top Sunbolt enclosure — 30% better protection against heat from direct sunlight. Ideal for outdoor or sun-exposed installations.
- White-top Sunbolt — 30% better sun protection
- Wi-Fi 2.4/5 GHz + Bluetooth Classic & LE
- RJ45 + PoE or 19–36 VDC power
- PROFINET IO, EtherNet/IP, Modbus TCP
- Access point or client mode
- IP66/67, –40 to +65 °C, UL Class I Div 2
Serial Wireless Bolts
RS-232/485 — Bluetooth + Wi-Fi 2.4/5 GHz
Bring serial machines onto a wireless network — converts RS-232/485 data to TCP/IP transparently, and acts as a Modbus-TCP to Modbus-RTU router so existing serial Modbus devices look like Modbus-TCP devices to your SCADA. Up to seven simultaneous clients in access-point mode. Available in Black and Sunbolt White.

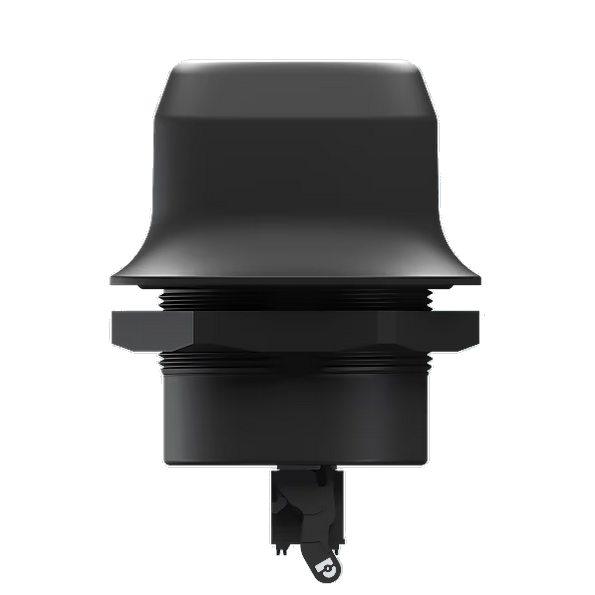

Anybus Wireless Bolt — Serial
Black version, Bluetooth + Wi-Fi 2.4/5 GHz
Wireless gateway for RS-232/485 machines. Converts serial data to TCP/IP over the wireless link. Built-in Modbus-TCP to Modbus-RTU router gives transparent access to your existing Modbus-RTU devices.
- RS-232 / RS-485 to TCP/IP conversion
- Wi-Fi 2.4/5 GHz + Bluetooth Classic & LE
- Modbus-TCP ↔ Modbus-RTU router
- Access point: up to 7 simultaneous clients
- Web-based config + CLI for diagnostics
- IP66/67, –40 to +65 °C

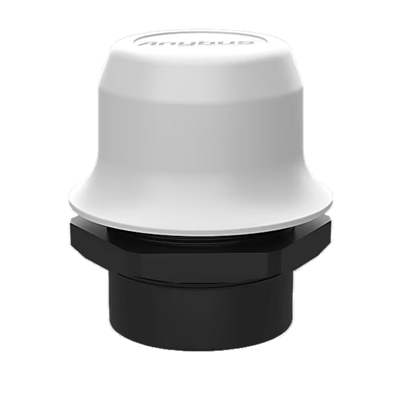

Anybus Wireless Bolt — Serial
Sunbolt White, Bluetooth + Wi-Fi 2.4/5 GHz
Same RS-232/485 wireless gateway functionality with the white-top Sunbolt enclosure for 30% better protection against direct-sunlight heat — recommended for outdoor or sun-exposed installations.
- RS-232 / RS-485 to TCP/IP conversion
- Wi-Fi 2.4/5 GHz + Bluetooth Classic & LE
- Modbus-TCP ↔ Modbus-RTU router
- Access point: up to 7 simultaneous clients
- White-top Sunbolt — 30% better sun protection
- IP66/67, –40 to +65 °C
CAN Wireless Bolts
CAN 2.0A/B — Bluetooth + Wi-Fi 2.4/5 GHz
Wireless access for CAN-based machines and vehicles. Transparent transport of CAN, CANopen, and J1939 data over a Wi-Fi or Bluetooth link. Up to 28 freely-adjustable CAN receive pass-through filters give precise control over which CAN messages are forwarded — ideal for AGVs, mobile machinery, and J1939 vehicle telemetry to handheld tablets.
Anybus Wireless Bolt — CAN
Black version, Bluetooth + Wi-Fi 2.4/5 GHz
Wireless CAN gateway with transparent CAN-over-TCP/IP transport. Works with CANopen, J1939, and any custom CAN protocol. Up to 28 receive filters, individual baud-rate support per node in multi-node networks.
- CAN 2.0A/B (11/29-bit identifiers)
- Wi-Fi 2.4/5 GHz + Bluetooth Classic & LE
- CANopen and J1939 transparent
- 28 CAN receive pass-through filters
- Compatible with Wireless Bridge / Bolt Ethernet
- IP66/67, –40 to +65 °C, 9–30 VDC
Anybus Wireless Bolt — CAN
Sunbolt White, Bluetooth + Wi-Fi 2.4/5 GHz
Same CAN wireless gateway functionality as the Black version, with the Sunbolt white-top enclosure for 30% better protection against direct-sunlight heat. Ideal for outdoor mobile-machine deployments.
- CAN 2.0A/B (11/29-bit identifiers)
- Wi-Fi 2.4/5 GHz + Bluetooth Classic & LE
- CANopen and J1939 transparent
- 28 CAN receive pass-through filters
- White-top Sunbolt — 30% better sun protection
- IP66/67, –40 to +65 °C, 9–30 VDC
Cellular Wireless Bolts (LTE)
LTE Cat-4 — US & Canada Bands, with GNSS
Industrial-grade cellular router providing high-speed transparent internet access for stationary and mobile machines via LTE Cat-4 (4G) with 3G fallback. Includes built-in firewall, NAT, DHCP server, and GNSS satellite positioning (GPS, GLONASS, Galileo, BeiDou). Ideal for connecting field equipment to enterprise / IIoT services like MQTT and OPC UA. US/Canada-band variant covers LTE B2/B4/B5/B12/B13/B14/B25/B26/B66.

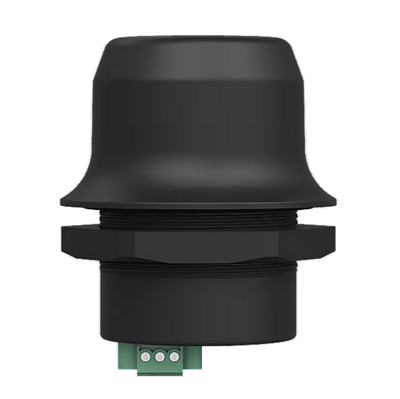

Anybus Wireless Bolt LTE — US & CA
Black version, LTE Cat-4 + 3G fallback
Cellular wireless bolt for North American carriers. Down to 100 Mbit/s, up to 50 Mbit/s. Nano SIM slot accepts any carrier's data SIM. Integrated dual antennas with MIMO; GNSS satellite positioning included.
- LTE Cat-4: B2/B4/B5/B12/B13/B14/B25/B26/B66
- 3G fallback, GNSS positioning
- Nano SIM slot, dual antennas + MIMO
- RJ45 Ethernet, PoE Class 0 or 11–33 VDC
- Firewall, NAT, DHCP server
- IP66/67 / UL NEMA 4X, UL C1D2 Haz.Loc.

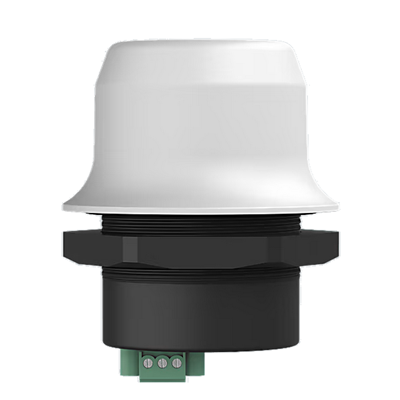

Anybus Wireless Bolt LTE — US & CA
Sunbolt White, LTE Cat-4 + 3G fallback
Same LTE cellular functionality as the Black version with the Sunbolt white-top enclosure for sun-exposed installations — public-safety telematics, transportation, outdoor IIoT, etc.
- LTE Cat-4: B2/B4/B5/B12/B13/B14/B25/B26/B66
- 3G fallback, GNSS positioning
- Nano SIM slot, dual antennas + MIMO
- RJ45 Ethernet, PoE Class 0 or 11–33 VDC
- White-top Sunbolt — 30% better sun protection
- IP66/67 / UL NEMA 4X, UL C1D2 Haz.Loc.
Next-Generation Wireless Bolts
Bolt II — Wi-Fi 5 — and Bolt 5G
For applications that demand more bandwidth, lower latency or roaming-class performance, the next-generation Anybus bolts step up. The Wireless Bolt II adds Wi-Fi 5 (802.11ac) with WDS bridging and WPA3 security; the Wireless Bolt 5G connects to public or private 5G networks for ultra-low-latency machine connectivity, with PROFINET / EtherNet/IP / Modbus TCP support via the Anybus Tunnel Gateway.

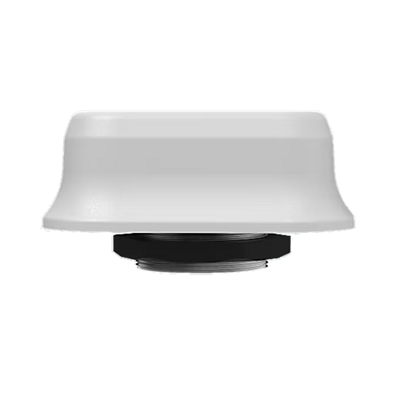

Anybus Wireless Bolt II
Wi-Fi 5 (802.11ac) — Access Point or Client
Next-generation Wireless Bolt with Wi-Fi 5 for high-throughput links. Wireless Distribution System (WDS) lets you transparently extend industrial Ethernet networks (PROFINET, EtherNet/IP, Modbus TCP) wirelessly. Ideal for AGVs roaming between access points.
- Wi-Fi 5 (IEEE 802.11ac), 5 GHz band
- Access point or client mode, WDS bridging
- WPA3 encryption, HTTPS configuration
- Industrial Ethernet (PROFINET, EtherNet/IP, Modbus TCP)
- PoE single-cable power + data
- Intuitive web-based GUI

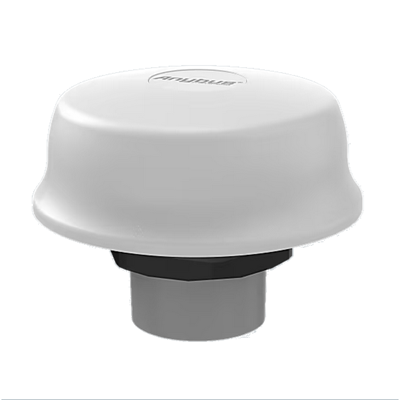

Anybus Wireless Bolt 5G
5G NR — Public & Private 5G Networks
Connects industrial devices and machines to 5G networks for low latency, high throughput, and high reliability. Ericsson Verified and tested with Siemens Device Interoperability. Combine with the Anybus Tunnel Gateway for PROFINET / EtherNet/IP / Modbus TCP over 5G.
- 5G NR sub-6 GHz, broad band coverage
- LTE-FDD/TDD fallback
- 4 integrated antennas, pre-directed for coverage
- PROFINET (incl. PROFISafe), EtherNet/IP (incl. CIP Safety), Modbus TCP
- Single-cable PoE or 24 VDC power
- IP66 (top) / IP30 (base), Ericsson Verified
Need Help Choosing?
Ethernet, Serial, CAN, LTE or 5G? Black or Sunbolt? Our team can help you specify the right Anybus Wireless Bolt for your application — for pricing, lead time, antenna planning, or technical guidance.
